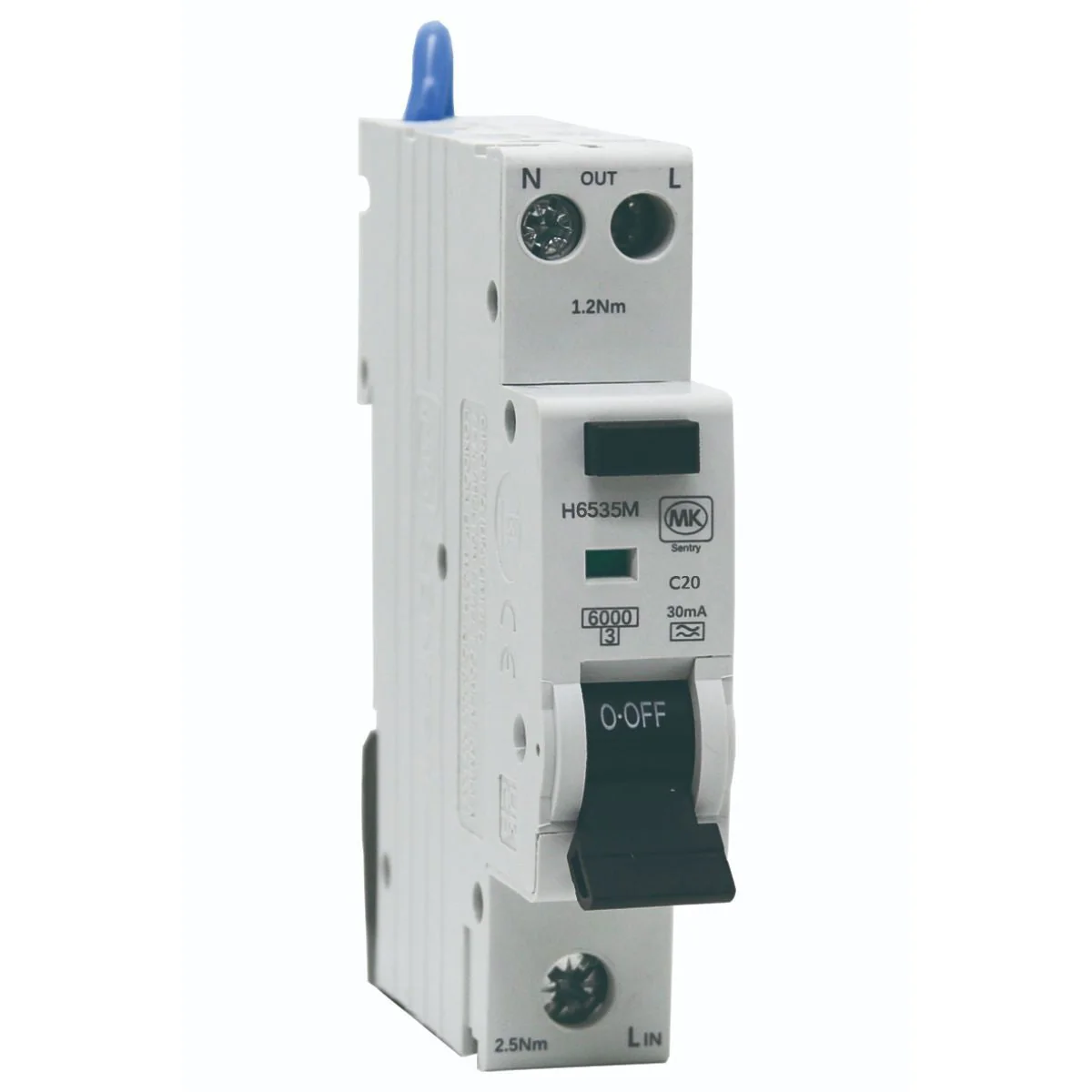

MK Sentry Mini Type A RCBO C Curve 6kA 30mA

MK Sentry Mini Type A RCBO C Curve 6kA 30mA

MK Sentry Mini RCBO C Curve 6kA 30mA Type A

MK Sentry

  • Single module
  • Single Pole and Switched Neutral
  • Meet BS EN and IEE Wiring Regulation requirements
  • Allows both overcurrent and earth fault protection and detection
  • Available in a range of current ratings
  • RCD Type A
  • These are used to respond to AC and pulsating DC Currents
  • MCB Curve C
  • Tunnel type terminals
  • Generous terminal capacity
  • Positive contact status indication

The MK Sentry Mini RCBO offers a range of benefits including overcurrent and earth fault protection and detection, while meeting BS EN and IEE Wiring Regulation requirements. With a single module design and generous terminal capacity, it also features a precise and reliable positive contact status indication.


.
Current Rating 6A to 40A
Depth 73.2mm
Dimensions (H)85 mm x (W)18 mm x (D)73.2 mm
Guarantee 1 Year
Height 85mm
Incoming Terminal Capacity 10mm²
Mounting DIN Rail
Number of Modules 1
Number of Poles Single Pole and Switched Neutral
Rcd Type A
Short Circuit Rating 6kA
Standards BS EN 61009-1, BS IEC 61009-2-2, BS 61543 (EMC)
Tripping Characteristics C Curve
Tripping Sensitivity 30mA
Voltage Rating 230V
Width 18mm
Select Amperage
From $10.11

Original: $28.89

-65%
MK Sentry Mini Type A RCBO C Curve 6kA 30mA—

$28.89

$10.11
