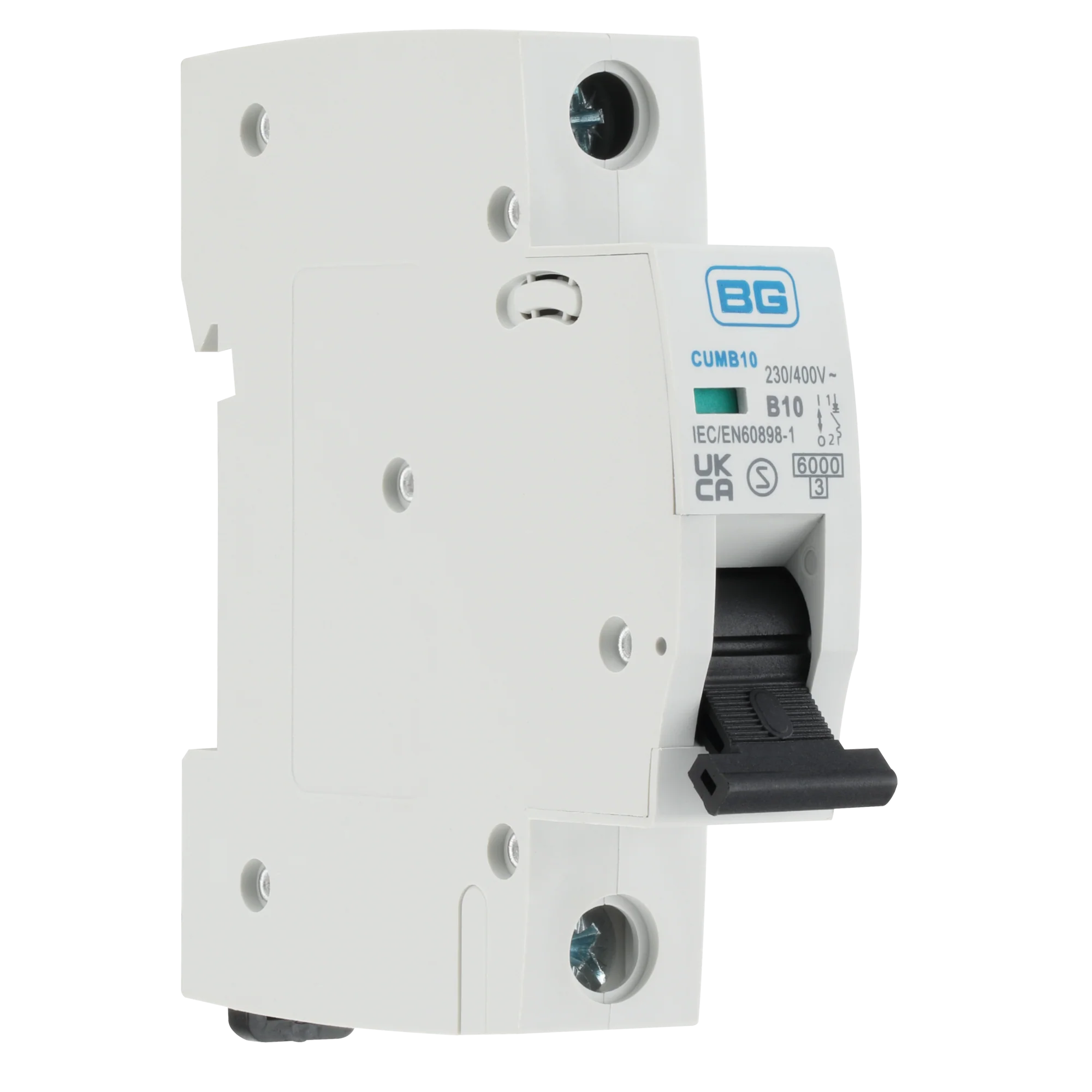

BG Single Pole Bidirectional 6kA B Curve MCB

BG Single Pole Bidirectional 6kA B Curve MCB

• Bidirectional
• Positive contact status indicator
• B curve
• 6kA breaking capacity
• DIN rail mountable
• Device capable of being locked in 'ON' or 'OFF' position using a device lock
• Single Pole
• MCB
• Conforms to IEC/EN 60898

The BG Single Pole Bidirectional MCB offers a 6kA breaking capacity and conforms to IEC/EN 60898 standards. Its bidirectional feature allows for versatile installation options, while the contact status indicator provides added safety assurance. The B curve design ensures reliable protection and DIN rail mountability enables convenient installation. Plus, it can be locked in the desired position with a device lock for added security.

.

Brand	BG
Category	MCBs Single Pole
Number of Poles	Single Pole
Short Circuit Rating	6kA
Tripping Characteristics	B Curve
Type	Circuit Breaker
Terminal Torque	2.0Nm
Screw Terminal	PZ2
Operating Temp Range	-25°C - +40°C
Standards	IEC/EN 60898
